AVER VIDEO CONFERENCING SOLUTIONS – USB VIDEO CONFERENCING

An ultra-wide FOV to fit everyone at the table and the entire whiteboard into your meeting, with minimum distortion! AVer’s outstanding video quality, portability and durability ensures the ultimate video conferencing experience.



Warranty

3 year against manufacturing defects
*1st year comprehensive warranty. 2nd & 3rd parts only
*Terms & conditions apply
*Varies according to model

CAM340+

CAM130

VB130

VB342 Pro

CAM520 Pro2

CAM540

CAM550

VC520 Pro2

VC540

VC550

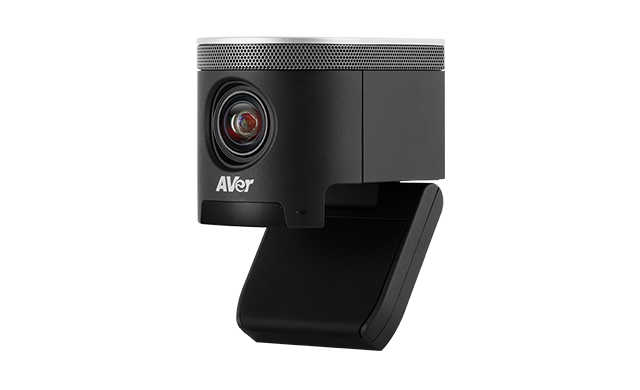

AVER CAM340+

Specs Features

Overview get a Quote

Accessories

A performance-quality multi-glass lens with deep focus and a staggering 120° FOV.
Lets you record your meetings in 4K at 30 fps along with a 4x zoom capability.
Gives users the freedom to turn any space into a huddle room thanks to its versatile monitor mount, easy-to-carry size, and durable build.
Comes with a 3-year warranty plus 2-year extension warranty (conditions apply).
3 years against manufacturing defects* (+2 year parts only warranty extension available only if end user registers with AVer)
*1st year comprehensive warranty. 2nd & 3rd parts only
*terms & conditions apply

AVER CAM130

Specs Features

Overview get a Quote

Accessories

An innovative solution to effortlessly conduct meetings. CAM130 defines privacy and offers lifelike imaging with intelligent lighting for small rooms and WFH, resulting in brighter and better meetings.

With a 4K True WDR Sony Sensor, CAM130 demonstrates vibrant imaging even in difficult lighting settings. Auto exposure, white balance, backlight adjustment, and dual-lens viewing angles (120° /90°) are among the high-performance imaging features included.
Values your privacy with a built-in lens cover so you would not have to worry about network hackers anymore.
Auto and preset framing are included along with an innovative SmartFrame function to smoothly follow and frame all participants on screen or a specific area.
Three antibacterial spray-coating layers safeguard the camera, allowing you to use it without fear of infection.
3 years against manufacturing defects*
*1st year comprehensive warranty. 2nd & 3rd parts only
*terms & conditions apply

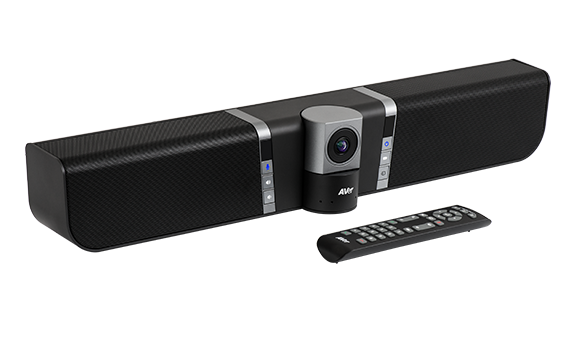

AVER VB130

Specs Features

Overview get a Quote

Accessories

Ensure an uninterrupted video experience with exceptional audio quality, ultra-clear 4K imaging with flexible FOV, and increased efficiency with VB130.

Automatically adjusts lighting levels and offers full-range colour temperature (2700-5700K) to fit any environment.
Auto framing to fit every participant on-screen in seconds.
Ultra-Clear 4K Imaging with Flexible FOV ( Field of view).
Noise-blocking technology provides an adjustable audio fence that mutes any sound outside of the viewing angle.
A five-microphone array with beamforming technology precisely takes up and reproduces resonant sounds from any location in the room.
Enjoy less touching and increased efficiency with the latest AI-triggered viewing-angle adjustment.
Includes an Audio Preset Tracking Mode that tracks based on preset locations by identifying and following the human voice.
3 years against manufacturing defects*
*1st year comprehensive warranty. 2nd & 3rd parts only
*terms & conditions apply

AVER VB342 Pro

Specs Features

Overview get a Quote

Accessories

The superior 4K PTZ lens on the VB342 Pro delivers unprecedentedly vivid images and clear details, for small and mid-size rooms.
Smart AVer AI’s Audio Tracking and Auto Frame automatically focuses on and detects all groups and speakers in the room.
The VB342 Pro will locate and frame the area, when the presenter speaks, through a combination of audio tracking and audio preset tracking AI technology.
The Smart Gallery function enables AI face and body detection technology to crop participants’ faces and clearly capture attendees.
AVer Audio Fence technology combined with Beamforming Technology ensures an uninterrupted meeting zone, resonant sound and clear participant voices.
3 years against manufacturing defects* (+2 year parts only warranty extension available only if end user registers with AVer)
*1st year comprehensive warranty. 2nd & 3rd parts only
*terms & conditions apply

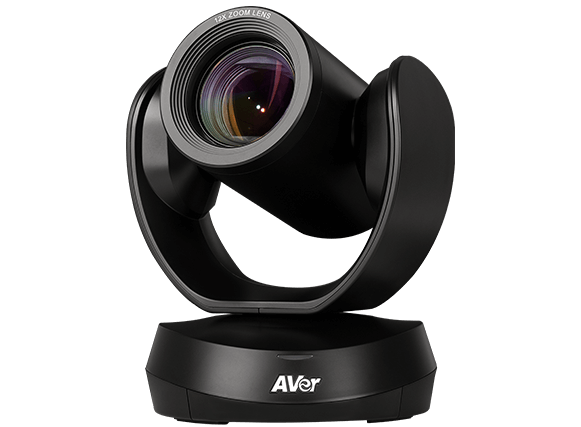

AVER CAM520 PRO2

Specs Features

Overview get a Quote

Accessories

AVer’s improved SmartFrame makes meetings more efficient and secure. This capability employs cutting-edge face and body detection to automatically frame people wearing masks or displaying any facial profile from up to 7-10 meters away!
By using a CAM520 Pro2 and its Preset Framing mode, you may intelligently monitor presenters via preset zones. You can program the camera to automatically track presenters via numerous predefined viewing locations. Remote control is not required!
The CAM520 Pro2 is accessible as a camera video source for virtual meetings through a single Ethernet connection thanks to AVer Virtual Streaming technology. A PoE+ port also simplifies installation and lowers installation costs.
Stream live on YouTube or Facebook! With the CAM520 Pro2, you can easily create live video content by sending an H.264 RTSP/RTMP stream to your cloud or on-premise streaming delivery network.
When you utilize the CAM520 Pro2, you may have colorful meetings even in high-contrast lighting conditions. Sony True WDR embedded in the camera is effective up to 120dB, automatically improving highlights, shadows, and white balance. You deserve to have enterprise-level imagery in every meeting.
3 years against manufacturing defects*
*1st year comprehensive warranty. 2nd & 3rd parts only
*terms & conditions apply

AVER CAM540

Specs Features

Overview get a Quote

Accessories

The CAM540 features a high-end Sony 4K CMOS sensor that captures 4K video at 30 frames per second, giving customers an incredibly lifelike meeting experience.
The CAM540 has cutting-edge 16X overall zoom capabilities.
For conference rooms, the CAM540 features a new elegant and fluid appearance. In comparison to classic designs, the CAM540 is stylish and tiny, allowing you to conserve room.
The CAM540 includes an analytics API that allows organizations and third-party software providers to get people-counting data in order to have a better knowledge of meeting-space usage.
The CAM540 has simple plug-and-play functionality through a USB3.1 Gen1 Type-C connector, eliminating the need for a sophisticated setup. Plugin the camera and you’ll be ready in seconds.
The CAM540 camera is designed to be long-lasting and dependable. AVer’s industry-leading 3+2 year warranty policy (conditions apply) will ensure that AVer is always there to provide the service you need.
3 years against manufacturing defects*
*1st year comprehensive warranty. 2nd & 3rd parts only
*terms & conditions apply

AVER CAM550

Specs Features

Overview get a Quote

Accessories

4K dual-lens technology captures the whole room, offering a premium conference experience for mid-to-large scale rooms.
Secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants and optimize meetings.
Integrated AI gesture recognition allows you to utilize intuitive gesture control to operate the camera and eliminate touchpoints.
The Smart Gallery function enables AI face and body detection technology to crop participants’ faces and clearly capture attendees.
AVer Virtual Streaming technology makes the CAM550 available as a camera video source for virtual meetings via a single Ethernet connection. A PoE+ port also makes setup easier and lowers installation expenses.
Integrated with 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link function for upgraded smart conference meeting experience.
3 years against manufacturing defects (1st year comprehensive warranty. 2nd & 3rd parts only).
1 year warranty for accessories.
*terms & conditions apply

AVER VC520 PRO2

Specs Features

Overview get a Quote

Accessories

The VC520 Pro2 provides balanced and consistent audio performance. The VC520 Pro2, the industry’s first daisy-chaining conferencing system, offers up to two extension speakerphones or a full-duplex microphone array. The VC520 Pro2’s creative speakerphone makes it a versatile alternative for mid-to-large conference rooms.
The VC520 Pro2 is really simple to set up. All you need to make a call is a single USB cable.
With a total zoom of 24X, you can present products with extraordinary clarity and demonstrate every detail. The VC520 Pro2 also improves team cooperation by providing smoother video imagery at up to 1080p, 60fps resolution.
With its improved auto-framing capability, the VC520 Pro2 can detect and frame meeting participants from up to 7 meters away, even if they are wearing masks or presenting facial profiles.
Share your real-time events with viewers via the internet. The VC520 Pro2 supports H.264 RTSP/RTMP and provides consistent live streaming to your preferred channel in 1080p at 60pfs.
Control the light values of pixels with ease and maintain steady clarity on the screen.
3 years against manufacturing defects*
*1st year comprehensive warranty. 2nd & 3rd parts only
*terms & conditions apply

AVER VC540

Specs Features

Overview get a Quote

Accessories

The Bluetooth functionality of the improved speakerphone makes connecting to tablets and mobile phones simple, and it maintains your conference room clean so you can create a good impression.
The VC540 brings AVer SmartFrame efficiency to your conference room. SmartFrame expands the viewing field with an auto-framing solution that quickly and easily frames everyone in your conference.
The VC540 features a 16X overall zoom and multi-coated focusing lenses to display intricate product details in crystal-clear clarity.
To offer the finest footage possible, the VC540 employs a SonyTM high-quality sensor and multi-lens glass.
3 years against manufacturing defects*
*1st year comprehensive warranty. 2nd & 3rd parts only
*terms & conditions apply

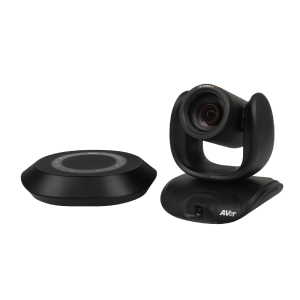

AVER VC550

Specs Features

Overview get a Quote

Accessories

4K dual-lens technology plus 24X total zoom offers precise and clear viewing of meeting rooms and participants.
Secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants and optimize meetings.
With AVer’s Scalable Speakerphone technology, the updated VC550 offers unmatched audiovisual quality while adapting to mid- to large-sized spaces.
The Smart Gallery function enables AI face and body detection technology to crop participants’ faces and clearly capture attendees.
Ensures unmatched audio quality to keep you focused with advanced noise suppression, the FONE540, that filters out disrupting background noises.
The FONE540 is also equipped with double-talk detection, eliminating the need to repeat yourself.
3 years against manufacturing defects (1st year comprehensive warranty. 2nd & 3rd parts only).
1 year warranty for accessories.
*terms & conditions apply

aver CAM340+ Specs

Camera	Sensor: 1/2.5"Sony Exmor 4K CMOS sensor. 120° Wide field of view. Zoom: up to 4X leveraging 4K sensor. (not available in 4K or 60fps).
Mic	1 uni-directional microphones. Frequency response: 100~12K Hz. Sensitivity: -37dB.
Connectivity	USB Type C connector (2.0, 3.1 Gen1 type C. DC jack for power adapter (for USB 2.0 connection).
Control	IR remote control (optional accessory, compatible with CAM540). UVC / plug-and play. PTZApp.
Security and Mount	Built-in TV mount (above TV, up to 46 mm deep) Kensington slot. 1/4" tripod mounting screw.
Power	Consumption: USB 3.1 Supports up to 4K : 5V/0.9A;. USB 2.0 Supports up to 2K: 5V/0.5A.
System Requirement	Windows 7/10/11. Mac OS X 14.4 or higher. Chromebox 3 version 94.0.4606.114 or later.
Dimensions	60 x 60 x 75 mm/ 0.251 kg.

Camera	Sensor: 1/2.5"Sony Exmor 4K CMOS sensor. 120° Wide field of view. Zoom: up to 4X leveraging 4K sensor. (not available in 4K or 60fps).
Mic	1 uni-directional microphones. Frequency response: 100~12K Hz. Sensitivity: -37dB.
Connectivity	USB Type C connector (2.0, 3.1 Gen1 type C. DC jack for power adapter (for USB 2.0 connection).
Control	IR remote control (optional accessory, compatible with CAM540). UVC / plug-and play. PTZApp.
Security and Mount	Built-in TV mount (above TV, up to 46 mm deep) Kensington slot. 1/4" tripod mounting screw.
Power	Consumption: USB 3.1 Supports up to 4K : 5V/0.9A;. USB 2.0 Supports up to 2K: 5V/0.5A.
System Requirement	Windows 7/10/11. Mac OS X 14.4 or higher. Chromebox 3 version 94.0.4606.114 or later.
Dimensions	60 x 60 x 75 mm/ 0.251 kg.

Aver CAM340+ Features

Fit Everyone into Your Meeting

Obtain ultra-wide field of view video conferencing in your meeting room with a performance-quality multi-glass lens with deep focus and a staggering 120° FOV. Fit everyone at the table and the entire whiteboard into your meeting with minimal distortion. No more awkward seating arrangements!

Premium Video Quality

Experience your meetings in 4K at 30fps with the versatile CAM340+. Capable of 4X zoom, as if it were a traditional optical camera, the CAM340+ scans the room with no moving parts and no quality lost.

*ePTZ and 4X zoom are not available in 4K or 60fps

Freedom to Collaborate Anywhere

The CAM340+ is a completely portable solution for ultimate video conferencing convenience. With a versatile monitor mount, easy-to-carry size, and durable construction, the CAM340+ gives users the flexibility to make any room a huddle room.

Reliable Video and Outstanding Quality

AVer’s quality manufacturing process ensures that the CAM340+ is always ready for use. Designed for durability, the CAM340+ camera is built to be durable and reliable. With AVer’s industry leading 3+2 years warranty program, we make sure that AVer is always there with the support you deserve.

Aver CAM340+ Accessories

Optional:

PN: 412U300-ASA

Remote Controller

Optional:

PN: 60U8C00000AD

Wall/Ceiling mount

Optional:

PN: 60U8C00000AD

Power adapter (for USB 2.0)

Optional:

PN: 064AUSBCFN

5M USB 2.0 extension cable (Type C to A)

Freedom to Collaborate Anywhere

PN: 61U6100000AC (EU+UK type) 61U6100000AD (TW type) 61U6100000AB (USA type) 61U6100000AG (AU type)

FONE540 USB Bluetooth Speakerphone

Optional:

PN: 60U3600000AB

Tripod

Huddle Room Conference Camera

Unbox, unfold, and connect to instantly start a next-generation video communication experience from your huddle and small conferencing rooms.

Sony 4K*

USB 3.1

Plug and play

3+2 Year Warranty

Aver CAM130 Specs

Camera	4K optical lens, 120° FOV, up to 4X zoom via ePTZ. Sony 4K sensor: ultra-crystal-clear image in any lighting. Intelligent fill light: automatically adjusts lighting levels to make you look energetic in a dim environment. SmartFrame: automatically adjusts FOV (auto focus) to track and fit all participants onscreen. Innovative Preset Framing: Follows the presenter through preset areas. 10 camera presets(through remote control and IP web page). True WDR up to 120db: 3D noise-reduction and superb backlight compensation optimize lighting in high-contrast conditions. Mirror, flip, AE, white balance: auto/manual override via PTZApp2. Minimum focus distance: 60 cm. People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage.
Mic	2 unidirectional microphones. Frequency response: 100–12K Hz. Sensitivity: -37 dB.
Connectivity	USB type-C 3.1 connector, backward compatible with USB 2.0. DC jack for power adapter (for USB 2.0 connection while using fill-light function).
Control	IR remote control. UVC/UVA plug-and-play. PTZApp 2.
Security and Mount	Built-in TV clip. Kensington slot. 1/4" tripod mounting screw.
Power	AC 100V–240V, 50/60 Hz. 5V/2A.
System Requirement	Windows® 7/10/11. MacOS X 14.4 or later. Chromebox 3 version 94.0.4606.114 or later.
Dimensions	160 (L) x 37 (H) x 60 (D) mm/ 0.282kg.

Aver CAM130 Features

Professional 4K Camera Offers Lifelike Imaging

The CAM130 demonstrates vivid imaging even in complex light conditions with a 4K True WDR Sony Sensor. Equipped with high-performance imaging functions like auto exposure, white balance, backlight compensation, and dual-lens viewing angles (120° /90° ) for different using scenarios, the CAM130 makes a strong case for use in huddle room and WFH scenarios.

Without Light

With light

Intelligent Lighting Automatically Adjusts to Fit Light Conditions

Establish an energetic and professional image in virtual meetings. When you’re working from home in a dim room, the camera offers full-range color temperature and automatic lighting level adjustments. The CAM130 ensures that you look great in any light.
* For best lighting results, sit within 1 meter away from the camera.

Intelligent Lighting Automatically Adjusts to Fit Light Conditions

Establish an energetic and professional image in virtual meetings. When you’re working from home in a dim room, the camera offers full-range color temperature and automatic lighting level adjustments. The CAM130 ensures that you look great in any light.
* For best lighting results, sit within 1 meter away from the camera.

Intelligent lighting

Auto Framing That’s Easy to Use

Effortlessly conduct meetings with auto and preset framing. With the innovative SmartFrame function, the CAM130 smoothly follows and frames all participants on screen or a specific area. Highly improve meeting efficiency and create a quality conference experience.

Auto framingI

Preset FramingI

Antibacterial Surface Guards Your Health

AVer’s germ-free solution provides health and safety for meetings. Three spray-coating layers cover the camera with antibacterial protection, so you can operate it without worrying about infection.

Note: Scratches on the surface decrease the antibacterial effectiveness.

Aver CAM130 Package Content

CAM130

Power Adapter

PN: 04131AGOOARJ(Adapter)
PN: 041399ECOAPA(EU plug)
PN: 041399UGOAPD(UK plug)
PN: 041399NHOAPC(AU plug)
PN: 041399FAOAPB(US plug)

USB 3.1 Type-C to Type-A Cable 1.8 m

PN:064AUSBCDL

Tripod Screw

Huddle Room Conference Camera

Sony 4K True WDR

Intelligent Lighting

SmartFrame

Wide 120° FOV

Antibacterial Surface

AVER VB130 Specs

Camera	4K optics lens, 120° FOV, up to 4X zoom. Sony 4K sensor : ultra-crystal-clear image in any lighting. Intelligent fill light : automatically adjusts lighting levels to make you look energetic in a dim environment. SmartFrame : automatic FOV adjustment (auto focus) to fit all participants. Smart Speaker : Voice triggered tracking people or specific preset areas. 10 camera presets (through remote control and IP web page). True WDR up to 120db: 3D noise-reduction and superb backlight compensation optimize lighting in high-contrast conditions. Mirror, flip, AE, white balance: auto/manual override via PTZApp2. Minimum focus distance: 60 cm. People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage.
Audio	Beamforming microphone array: 5 microphones, 4-meter pickup range. Echo cancellation and background noise suppression. Supports an expansion microphone. 6W speaker with a professional bass port tuned for communication. 180Hz–20kHz speaker frequency response. Output volume: 94dB SPL +/-2dB at 0.5 meters. Adjustable audio fence: freedom to define your meeting area.
Video Formats	YUV, YUY2, MJPEG. Network video compression format: H.264. Network protocols: RTSP, RTMP.
Connectivity	12V/2A power adapter. USB Type-B 3.1 connector, backward compatible with USB 2.0. RJ45 port for Ethernet. USB 2.0 Type-A for wireless connection (BT).
Control	IR remote control. WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported). UVC/UVA plug-and-play.
Power	AC 100V–240V, 50/60 Hz. Consumption: 12V/2A.
System Requirement	Windows® 7/10/11. MacOS X 14.4 or later. Chromebox 3 version 94.0.4606.114 or later.
Dimensions	350(L) x 65(H) x 75(D) mm/0.922 kg.

AVER VB130 Features

Ultra-Clear 4K Imaging with Flexible FOV

Flexibly adjust the field of view ( FOV) to fit y our situation. Equipped with a dual FOV function, the AVer VB130 ensures viewers always focus on the right spot and lets you experience versatile, 4K imaging in focus rooms or huddle rooms.

Without Light

With light

Always Appear Energetic via Intelligent Lighting

Look energetic and professional onscreen no matter where you are. AVer’s VB130 automatically adjusts lighting levels during virtual meetings in dim rooms*, and it also offers full-range color temperature (2700–5700 K) to fit any environment. Show your best side via AVer Intelligent Lighting.

*For best lighting results, sit within 1 meter away from the camera.

Uninterrupted Collaboration with AVer’s Audio Fence

Make sure you have an uninterrupted video meeting experience with the VB130’ s audio shield. AVer noise-blocking technology provides an adjustable audio fence that lets you silence any sound outside the viewing angle. Maintain focus on the meeting at hand to take advantage of every business opportunity.

Audio Fence I

Upgraded audio fenceI

Exceptional Audio Quality via Beamforming Technology

Everyone is a key participant in meetings with the Aver VB130. A beamforming five-microphone array precisely picks up and reproduces resonant voices from anywhere in the room. It’s your time to shine—with a little help from exceptional audio quality.

Efficient and Safe Meetings with Less Touching

Everyone is a key participant in meetings with the Aver VB130. A beamforming five-microphone array precisely picks up and reproduces resonant voices from anywhere in the room. It’s your time to shine—with a little help from exceptional audio quality.

Manual framing+auto framingI

Presentation modeI

Audio trackingI

Audio framingI

Audio preset tracking

AVER VB130 Package Content

VB130

Power Adapter and Power Cable (3 m)

PN: 04131ECOWAPW

Remote Control

PN: 0412U360-ASJ

USB 2.0 Type-B to Type-A Cable (5 m)

PN:064AUSBCFF

Wall Mount Kit

PN: 112AU360-A4L

Tripod Screw

QR code card

USB Type-A to Type-C Adapter

PN: 063AUB-UBAFL

4K Video Bar with Intelligent Lighting for Huddle Rooms

The All-in-One VB130 is equipped with the latest Intelligent Lighting so you can appear energetic and professional in any environment. Also, AVer’s audio fence, beamforming technology, and audio tracking precisely pick up voices. There’s even auto framing to fit every participant onscreen in seconds. Activate a brighter and better video conferencing experience with the VB130.

Intelligent Lighting

AVer Audio Fence

Beamforming technology

Auto framing

Antibacterial Surface

AVER VB342 Pro Specs

Camera	Sony 4K True WDR sensor: ultra-crystal-clear image in any lighting. 4K 3X optical zoom lens with 15X zoom. Field of view (D/H/V): 92°/84°/53°. SmartFrame & SmartSpeaker: automatic tracking and field of view adjustment to fit all participants and focus on the speaker. Presentation tracking: Tracking speaker with both preset area and participant tracking. Smart gallery* function for great visibility. Gesture control for intuitive camera control. Adjustable audio fence: Block outside noise; freely define your meeting area. True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions. 10 camera presets (through remote control). Mirror, Flip, AE, white balance: Auto, manual override via PTZApp 2. Minimum focus distance: 80 cm. People counting API: Enterprises and third-party software providers can obtain people-counting data and meeting interval for better understanding of meeting space usage.
Audio	10-element beamforming microphone array. 8 meters (27 ft) pickup range. Stereo speaker with output power 12W (6W x 2 pcs). Volume up to 96 dB SPL at 1/2 m. Echo cancellation. Noise suppression.
Video Formats	YUV, YUY2, MJPEG.
Connectivity	12V/5A power adaptor. Mini DIN 6 for RS-232 connection. USB 3.1 Type-C port, backward compatible with USB 2.0. HDMI out connection (DisplayLink). Phone in (3.5 mm audio Jack)/Speaker out for HA system. Two RJ45 ports (one for Ethernet, one for audio expansion speakerphone/ microphone). USB 2.0 Type-A2 : One for Wireless connection; one for IFP USB Touch back.
Control	IR remote control. WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported). VISCA/pelco P/pelco D via RS-232; Visca over IP. UVC/UVA plug-and-play. PTZApp-2.
Power	AC 100V~240V, 50/60 Hz. Consumption: 12V, 5A.
System Requirement	Windows® 7/10/11. MacOS X 14.4 or later. Chromebox 3 version 94.0.4606.114 or later.
Dimensions	737.8 x 125.5 x 115.5mm / 3.1 kg.

AVER VB342 PRO Accessories

Optional:

PN:60U8D00000AE

Expansion microphone with 10M cable

Optional:

PN:60U8D00000AG

Expansion microphone with 20M cable

Optional:

PN:064AUSB−−CC5

10M USB 3.1 extension cable (fiber, Type A to A) *

Optional:

PN:064AUSB−−CC6

20M USB 3.1 extension cable (fiber, Type A to A) *

Optional:

PN:064AUSB−−CDS

30M USB 3.1 extension cable (fiber, Type A to A) *

Optional:

PN:064AUSB−−CFN

5M USB 2.0 extension cable (Type C to A)

Optional:

PN:064AOTHERB66

Mini DIN6 to RS232 adapter

Optional:

PN:60U8D00000AF

TV mount and mounting screws

* Please contact local authorized dealer/distributor for purchasing optional accessories.
** AVer USB3.0 extender only supports USB3.0 port of PC. It’s not compatible with USB2.0.

AVER VB342 PRO Features

AVer SmartFrame Captures Everyone

Embedded with AVer SmartFrame, the VB342+ automatically frames all meeting participants, adjusting the camera zoom, pan, and focus to fit everyone on-screen in seconds without overreacting to unimportant movement. Have an efficient meeting with AVer SmartFrame.

Smart Frame

SmartSpeaker Instantly Identifies Speakers

Highly sensitive SmartSpeaker Tracking pinpoints speakers wherever they are in the room, cutting through noise to zoom in on the human voice. Also, SmartSpeaker’s 6-meter diameter pickup range saves wasted time moving speakers closer to the microphone.

Audio frame I

audio trackingI

Audio preset tracking

Constant Clarity with True WDR

Make sure you have an uninterrupted video meeting experience with the VB130’ s audio shield. AVer noise-blocking technology provides an adjustable audio fence that lets you silence any sound outside the viewing angle. Maintain focus on the meeting at hand to take advantage of every business opportunity.

WDR

Fit Everyone in the Room

The VB342+ captures the room with a 120° FOV multi-glass lens that features a motorized 180° pan and 105° tilt view for a wider perspective than ever. No more concern about where your seat is located.

Analytics for Efficient Meeting Rooms

The VB342+ provides an analytics API so enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage.

SmartFrame

SmartSpeaker

True WDR

Wide FOV 120°

INTRO VIDEO

AVER VC520Pro2 Specs

Camera	Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions. Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps. SmartFrame for automatic FOV adjustment to fit all participants. Innovative Preset Framing: Follow presenter based on preset areas. True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions. Zoom: 24X total zoom (12X optical zoom). Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele). Lens F#: 1.8 (wide) ~ 2.8 (tele). Mirror, flip, AE, white balance: auto/manual override via PTZApp 2. Field of view(D/H/V): 84.5°/76°/48°. Pan: ±170° , Tilt: +90° (up) -30° (down). 10 camera presets (via remote control).
Speakerphone	Full duplex microphone array with echo cancellation. Advanced noise suppression. Dual-omnidirectional microphone array. 3.5 mm phone-in jack. 3.5 mm line out. Speaker: 6W, Adjustable to 90dB SPL at 0.5 m. Touch controls for volume down/up, mute, phone input, call, and hang-up. Bridge phone-in and USB into one call.
Video Format	YUV, YUY2, MJPEG, NV12. Network video compression format: H.264. Network protocols: RTSP, RTMP.
Audio Format	AAC-LC. Network protocol : RTSP, RTMP.
Connectivity	12V/5A power adaptor. Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain). USB 3.1 Type-B connector ,backward compatible with USB 2.0. IP (RJ45).
Control	IR remote control. VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command). Remote side: VISCA over IP, IP (RJ45). UVC/UAC plug-and-play. WebUI : Browser IP access via Chrome (does not support Internet Explorer).
Power	AC 100V ~ 240V, 50/60 Hz. Consumption : 12V, 5A.
System Requirement	Windows® 7/10/11. Mac OS X 14.4 or higher. Chromebox 3 version 94.0.4606.114 or later.
Dimensions	Camera : 142.7 x 153 x 182 mm/1.45 kg. Speakerphone : 220 x 181.5 x 49.5 mm/0.85 kg.

AVER VC520pro2 Accessories

VC520 Pro2 Camera

VC520 Pro2 Speakerphone

Remote Control

PN:412U340-ASB

Power Adapter

USB2.0 type-B to type-A cable (16.5 ft/5 m)

PN: 064AUSBCFG

Camera to Speakerphone Cable (33 ft/10 m)

PN: 064AOTHERCD3

Power cord (6 ft/1.8 m)

3.5 mm aux cable (3 ft/0.9 m)

PN:112AU340-A6B PN:112AU340-A6C PN:100AAAAAAAMD*2

¼" tripod screw

QR Code Card

* Please contact local authorized dealer/distributor for purchasing optional accessories.
* Please refer to the extension speakerphone/microphone configuration before purchasing these devices. (See the VC520 Pro manual for more details.)

Full HD 1080p

One USB Cable

Every Detail

Improved Safety & Efficiency

Speakerphone Extension Solutions

Microsoft Teams edition

Standard edition

AVER VC520Pro2 Features

VC520 Pro2 Microsoft Teams Rooms Edition

This exclusive version of the VC520 Pro2 speakerphone lets you start meetings instantly with an embedded Microsoft Teams button* and LED status indicator. Just touch the button to enter a meeting and check the call status. Also, you can enjoy an always-clear audio experience via the two expansion microphones that come with this special edition system.

* Only available for the VC520 Pro2 Microsoft Teams Rooms edition, which includes a camera, a speakerphone, and two expansion microphones.

Get Perfect Audio with an Extended Speakerphone

The VC520 Pro2 offers balanced and steady audio performance. As the first conferencing system in the industry to deliver a daisy-chain function, the VC520 Pro2 supports either up to two expansion speakerphones or a full duplex microphone array. The inventive speakerphone makes the VC520 Pro2 a flexible option for fit mid-to-large conference rooms.
Note:
Expansion speakerphones and microphones cannot be added together.
The standard speakerphone cannot be applied as an expansion speakerphone.

Support Video and Audio with One USB Cable

Installing the VC520 Pro2 is super easy. All you need to get set up for a call is a single USB cable. This direct connection not only saves time but also keeps your meeting table tidy and organized. Simplify your setup process and decrease installation costs with the VC520 Pro2.

Spot Every Detail with an 24X* Total Zoom

Present products in extreme clarity and demonstrate every detail with an 24X* total zoom. The VC520 Pro2 also maximizes team collaboration with smoother video imaging than ever at up to 1080p, 60fps quality.

*Please use PTZApp 2 to set up 24X zoom.

Improve Meeting Safety & Efficiency with SmartFrame

AVer developed an advanced SmartFrame function that conforms to the latest trends. Equipped with this upgraded auto-framing feature, the VC520 Pro2 can detect and frame meeting participants even when they wear masks or present facial profiles from up to 7 meters away. The VC520 Pro2 cuts through triviality and greatly improves conferencing efficiency.

Auto framing I

Preset framingI

Livestream Videos Anytime, Anywhere

Share your real-time happenings to viewers over the internet. With H.264 RTSP/RTMP support, the VC520 Pro2 offers stable livestreaming to your favorite channel in 1080p at 60pfs. Deliver first-hand information to your audience and address the latest news whenever and wherever you like.

Keep Natural Clarity in Any Light Conditions

There’s no need to worry about lighting anymore! The Sony sensor embedded in the VC520 Pro2 enables True WDR up to 120dB. Effortlessly control the light values of pixels and display constant clarity on the screen.

AVER VC540 Specs

Camera	Ultra-crystal-clear image support up to 4K Frame rate: 4K 30fps, 1080p , 720p , 640x480, 320x240 at 60, 30, 15fps. SmartFrame: automatic FOV adjustment to fit all participants. 16X zoom. Autofocus : minimum working distance 1 meter. 86° horizontal field of view. Backlight compensation and 2D noise reduction technology for optimizing light balance in varying conditions. Pan : ±160° , Tilt: +90° (up) -30° (down). 10 camera presets (via remote control. Standard tripod screw holes. Analytics API: enterprises and third-party software providers can obtain people-counting data to better understand meeting-space usage.
Speakerphone	Bluetooth / USB Wired. Full-duplex microphone array with echo cancellation. Advanced noise suppression. 2-microphone array. 3.5 mm phone-in Jack. 3.5 mm line out. Speaker volume : adjustable to 90 dB SPL at 0.5 m. Touch controls for volume down/up, mute, phone input, call, and hang up. Can bridge phone-in and USB into one call.
Video Format	YUV, MJPEG.
Connectivity	Mini DIN 6 for RS232 connector for camera. USB Type-C connector for camera. Micro USB connector for speakerphone. IP (RJ45) connector for speakerphone. Bluetooth for speakerphone.
Control	IR remote control. VISCA/pelco and P/pelco D via RS232. UVC/plug-and-play. PTZApp.
Power	AC 100V ~ 240V, 50/60 Hz. Consumption : 12V, 5A.
System Requirement	Windows® 7/10/11. Mac OS X 14.4 or later. Chromebox 3 version 94.0.4606.114 or later.
Dimensions	Camera : 130.7 x 97.8 x 171.1 mm. Speakerphone : 220 x 181.5 x 49.5 mm.

AVER VC540 Features

Bluetooth Makes Things Simple

Get rid of complicated cables. The upgraded speakerphone’s Bluetooth capability makes connecting to tablets and mobile phones easy, and it keeps your conference room clean so you can make a strong impression.

AVer SmartFrame Gets Your Meetings Started Fast

The VC540 delivers the efficiency of AVer SmartFrame to your meeting room. SmartFrame maximizes the viewable field with an auto-framing solution that quickly and effortlessly puts everyone in your meeting into frame.

Professional Clarity with a 16X total Zoom

Enhance your communication by showing every detail precisely and smoothly. The VC540 is embedded with a 16X total zoom and multi-coated autofocus optics to present complex product details in crystal-clear quality.

Cutting-Edge 4K Ultra HD

The VC540 uses a Sony™ high-quality sensor and multi-lens glass to provide the sharpest video possible. Also, an advanced image-processing engine allows you to display natural, vividly colored details even in challenging lighting conditions and on very low-latency networks.

Analytics for Efficient Meeting Rooms

The VB342+ provides an analytics API so enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage.

4K

Bluetooth

16X zoom

Auto Framing

Expansion Speakers/ Microphones

AVER VC540 Accessories

Optional:

PN:60U0100000AB

Expansion Speakerphone incl. 10m cable

Optional:

PN:60U0100000AC

Expansion Microphone pair incl. 5m cable

Optional:

PN:064AOTHERCD5

Expansion Speakerphone / Mic cable (20m)

Optional:

PN:064AUSB−−CC5

10M USB 3.1 extension cable (fiber, Type A to A)

Optional:

PN:064AUSB−−CC6

20M USB 3.1 extension cable (fiber, Type A to A) *

Optional:

PN:064AUSB−−CDS

30M USB 3.1 extension cable (fiber, Type A to A) *

Optional:

PN:064AUSB−−CBE

5M USB 2.0 extension cable (Type C to A)

Optional:

PN:064AOTHERB66

Mini DIN6 to RS232 adapter

Optional:

PN:060V2C10000A7

Foldable TV mount

¼" tripod screw

* Please contact local authorized dealer/distributor for purchasing optional accessories.
* Please refer to the extension speakerphone/microphone configuration before purchasing these devices. (See the VC520 Pro manual for more details.)

AVER CAM520Pro 2 Specs

Camera	Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions. Resolution : (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps. SmartFrame for automatic FOV adjustment to fit all participants. Innovative Preset Framing : Follow presenter based on preset areas. True WDR up to 120dB : Superb backlight compensation technology for optimizing light balance in high-contrast conditions. Zoom : 24X total zoom (12X optical zoom). Lens focal length : 3.9 mm (wide) ~ 47.3 mm (tele). Lens F#: 1.8 (wide) ~ 2.8 (tele). Mirror, flip, AE, white balance : auto/manual override via PTZApp 2. Field of view(D/H/V) : 84.5°/76°/48°. Pan : ±170° , Tilt: +90° (up) -30° (down). 10 camera presets (via remote control).
Video Format	YUV, YUY2, MJPEG, NV12. Network video compression format : H.264. Network protocols : RTSP, RTMP.
Connectivity	12V/5A power adaptor. Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain). USB 3.1 Type-B connector ,backward compatible with USB 2.0. IP (RJ45).
Control	IR remote control. VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command). Remote side: VISCA over IP, IP (RJ45). UVC/UAC plug-and-play. WebUI : Browser IP access via Chrome (does not support Internet Explorer). PTZApp 2.
Power	AC 100V ~ 240V, 50/60 Hz. Consumption : 12V, 2A. PoE+ : 802.3at.
System Requirement	Windows® 7/10/11. Mac OS X 14.4 or higher. Chromebox 3 version 94.0.4606.114 or later.
Dimensions	(D/H/V):84.5°/76°/48°

AVER CAm520Pro2 Accessories

CAM520 Pro2 Camera

Optional:

PN: 04131EGOOAN9

Power Adapter (3 m)

PN: 064AUSBCFG

USB2.0, Type-B Cable (5 m)

PN:412U340-ASB

Remote Control

Tripod Screw

QR code card

PN:064AOTHERCGR

Mini Din 9 to mini DIN8 RS232 Adapter

* Please contact local authorized dealer/distributor for purchasing optional accessories.

AVER CAM520Pro2 Features

Present Every Detail with an 24X* Total Zoom

Claim your advanced business benefits by presenting products in ultimate clarity and showing full details with an 24X* total zoom. The CAM520 Pro2 provides smoother video imaging than ever with up to 1080p, 60fps quality. Zoom in tightly on every facet of your products to win more business!

*Please use PTZApp 2 to set up 24X zoom.

Hold Efficient and Safe Meetings with Upgraded AVer SmartFrame

Keep meetings efficient and safe with AVer’s upgraded SmartFrame. This function uses next-generation facial and body detection to automatically frame people who are wearing masks or presenting any facial profile from up to 7~10 meters away!

Manual framing+auto framing

Smartly track presenters through preset areas by adding a CAM520 Pro2 and its Preset Framing mode. You can set multiple preset viewing areas that the camera will automatically follow presenters through. There’ s no need for a remote control!

preset framing

Access Video Calls Without the Hassle of Connecting a USB Cable!

AVer Virtual Streaming technology makes the CAM520 Pro2 available as a camera video source for virtual meetings via a single Ethernet connection. Also, a PoE+ port simplifies set up and reduces installation costs.
* Only available in Windows PC. Doesn’t support in MAC PC.

How to- Virtual stream

Enterprise-Grade Imaging with True WDR

Enjoy vivid meetings even in high-contrast backlight environments when you use the CAM520 Pro2. Embedded Sony True WDR is effective at up to 120dB, automatically refining highlights, shadows, and white balance. You deserve to experience enterprise-grade imaging in every meeting.

AVER CAM540 Specs

Camera	Ultra-crystal-clear image support up to 4K. Frame rate : 4K 30fps, 1080p , 720p , 640x480, 320x240 at 60, 30, 15fps. SmartFrame : automatic FOV adjustment to fit all participants. 16X zoom. Autofocus : minimum working distance 1 meter. 86° horizontal field of view. Backlight compensation and 2D noise reduction technology for optimizing light balance in varying conditions. Pan : ±160° , Tilt: +90° (up) -30° (down). 10 camera presets (via remote control). Standard tripod screw holes. Analytics API : enterprises and third-party software providers can obtain people-counting data to better understand meeting-space usage.
Video Format	YUV, MJPEG.
Connectivity	12V power adaptor. Mini DIN6 for RS232 connection. USB Type C connector (2.0, 3.1 Gen1).
Control	IR remote control. VISCA/pelco and P/pelco D via RS232. UVC/plug-and-play PTZApp.
Security and Mount	Camera mount included for wall or ceiling. Kensington slot.
Power	AC 100V ~ 240V, 50/60 Hz. Consumption : 12V, 5A.
System Requirement	Windows® 7/10/11. Mac OS X 14.4 or later. Chromebox 3 version 94.0.4606.114 or later.
Dimensions	97.8 x 130.7 x 171.1 mm/1.5kg

AVER CAm540 Accessories

Optional:

PN:064AUSB−−CC5

10M USB 3.1 extension cable (fiber, Type A to A) *

Optional:

PN:064AUSB−−CC6

20M USB 3.1 extension cable (fiber, Type A to A) *

Optional:

PN:064AUSB−−CDS

30M USB 3.1 extension cable (fiber, Type A to A) *

Optional:

PN:064AUSB−−CBE

5M USB 2.0 extension cable (Type C to A)

Optional:

PN:064AOTHERB66

Mini DIN6 to RS232 adapter

Optional:

PN:060V2C10000A7

Foldable TV mount

Optional:

PN: 61U6100000AC (EU+UK type) 61U6100000AD (TW type) 61U6100000AB (USA type) 61U6100000AG (AU type)

FONE540 USB Bluetooth Speakerphone

* Please contact local authorized dealer/distributor for purchasing optional accessories.
** AVer USB3.0 extender only supports USB3.0 port of PC. It’s not compatible with USB2.0.

Full HD 1080p

24X total Zoom

Auto Framing

Enterprise-Grade Imaging

AVER CAM540 Features

AVer SmartFrame Gets Your Meeting Started Fast

The CAM540 delivers AVer’s latest camera technology to your meeting room with AVer SmartFrame. SmartFrame maximizes the viewable field with auto-framing solution that effortlessly puts everyone in your meeting into frame fast and with no hassle. No more complex settings or time wasting controls simply click a single button and find the most comfortable distance for your meeting with the CAM540 and SmartFrame.

4K Ultra HD

The CAM540 supports a high-end Sony 4K CMOS that allows for 4K video to be captured at 30 frames per second, providing users with an unbelievably lifelike meeting experience.

High Detail 16X Total Zoom

The CAM540 is built with cutting edge 16X total zoom capability. Bringing an unseen level of clarity to video conferencing, the CAM540 maximizes your team’s collaboration with simple, easy, and efficient video communication.

Make an Impression with the CAM540’s Stylish New Design

The CAM540 offers a new sleek and fluid design for conferencing rooms. Compared to traditional designs, the CAM540 is elegant and compact to save you space. The CAM540 easily fits your modern meeting room and provides an experience that both novices and experts can enjoy in style.* Only available in Windows PC. Doesn’t support in MAC PC.

Just Plug-and-Play

The CAM540 provides a simple, easy to use experience. With a USB3.1 Gen1 Type-C cable, the CAM540 allows for simple plug-and-play functionality that means no more complicated settings. Plug in the camera and within seconds you’re ready to experience video collaboration with any video conferencing application and cloud service you’re familiar with.

Analytics for Efficient Meeting Rooms

The CAM540 provides an analytics API so enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage.

Reliable Video and Outstanding Quality

AVer’s quality manufacturing process ensures that the CAM540 is always ready for use. Designed for durability, the CAM540 camera is built to be durable and reliable. With AVer’s industry leading 3+2 years warranty program, we make sure that AVer is always there with the support you deserve.

SmartFrame

4K UHD*

USB3.1

Plug n Play

3+2 year warranty

AVER CAM550 Specs

Dual Camera	PTZ optical zoom lens Image sensor : Sony 4K EXMOR, crystal clear in any lighting. Frame rates : (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps. 24X Zoom: 12X optical; 2X digital zoom. Wide field of view :* DFOV 85°; HFOV 76°; VFOV 46°. Lens focal length : 3.9mm (wide) ~ 47.3mm (tele). Lens F#: 1.8 (wide) ~ 2.8 (tele). AE, white balance : auto, manual override via PTZApp 2. Minimum focus distance : 1.5m. Motorized Pan & tilt : Pan: ±170°;Tilt: +90° (up) -30° (down). Preset number : 10 via IR remote, 128 via RS232. Secondary fixed lens (AI lens) Image sensor : Sony 4K EXMOR. Frame rates and resolution set according to PTZ lens settings. Wide field of view: DFOV 95°; HFOV 78°; VFOV 50°.
Innovative features	Dynamic auto framing : secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants. Preset framing tracks both preset area and speaker. Simultaneous 3-way output :* USB, HDMI and IP connections. Gesture control provides intuitive camera controls. HDMI Picture in Picture (PIP) function. Smart gallery function offers great visibility for individual participant in the meeting room. Cableless access to meetings : Get rid of USB cable connections with AVer virtual USB streaming technology* (One RJ45 cable transfers IP streaming to USB.). Audio tracking support : Integration with 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link*** function.
Video Format	YUV, YUY2, MJPEG. Network video compression format: H.264, H.265. Network protocol : RTSP, RTMP.
Connectivity	USB type-B 3.1 connector, backward compatible with USB 2.0. 12V/2A DC jack power adapter. Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain). IP (RJ45) PoE+: 802.3at. HDMI 1.3: 1080p 30fps/ 60fps.
Control	IR remote control. VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command). Remote side : VISCA over IP, IP (RJ45). UVC plug and play. WebUI : Browser IP access via Chrome. (Not support IE). OSD setting : HDMI out to TV monitor. PTZApp 2.
Security and Mount	Kensington lock. 1/4" tripod mounting screw. Camera wall-mount bracket included.
Power	AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A. PoE+: 802.3 at.
System Requirement	Windows® 7/10. MacOS X 10.7 or later. Google Chromebook™ version 29.0.1547.70 or higher.
Dimensions	170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg.

AVER CAM550 Features

4K Dual Lens brings clarity to Mid-Large Meeting Rooms

4K dual-lens technology captures the whole room, offering a premium conference experience for mid-to-large scale rooms.

Meeting Efficiency is Enhanced with Dynamic Framing

Secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants and optimize meetings.

Contactless Control through AI Gesture Recognition

Integrated AI gesture recognition allows you to utilize intuitive gesture control to operate the camera and eliminate touchpoints.

Smart Gallery Highlights Participants

The Smart Gallery function enables AI face and body detection technology to crop participants’ faces and clearly capture attendees.

AVer Virtual Streaming Technology

AVer Virtual Streaming technology makes the CAM550 available as a camera video source for virtual meetings via a single Ethernet connection. A PoE+ port also makes setup easier and lowers installation expenses.

3rd Party Ceiling Microphone

Integrated with 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link function for upgraded smart conference meeting experience.

The 4K dual-lens technology and the gesture control functions of the CAM550 provides a stellar video conferencing experience for mid-large rooms, whilst capturing the entire room. Also equipped with an AI lens, the CAM550 features automated PTZ functions, which detects newcomers and provides a full view of meeting attendees. )

AVER CAm550 Accessories

PN: 064AUSBCDD

3m USB 3.1 type-B to type-A cable.

PN: 412U340-ASB

Remote control.

PN: 064AOTHERCGR

Mini DIN9 to mini DIN8 RS232 adapter cable.

PN: 064AHDMI-CGC

3m HDMI cable.

PN: 112AU340-A6B1, PN: 112AU340-A6C1, PN: 100AAAAAAAMD*2

Wall mounted bracket and screws.

Tripod screw.

* Features and accessories may differ due to product enhancement.

AVER VC550 Specs

Dual Camera	PTZ optical zoom lens Image sensor : Sony 4K EXMOR, crystal clear in any lighting. Frame rates : (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps. *24X Zoom : 12X optical; 2X digital zoom. Wide field of view: DFOV 85°; HFOV 76°; VFOV 46°. Lens focal length : 3.9mm (wide) ~ 47.3mm (tele). Lens F# : 1.8 (wide) ~ 2.8 (tele). AE, white balance : auto, manual override via PTZApp 2. Minimum focus distance : 1.5m. Motorized Pan & tilt : Pan: ±170°;Tilt: +90° (up) -30° (down). Preset number : 10 via IR remote, 128 via RS232. Secondary fixed lens (AI lens) Image sensor : Sony 4K EXMOR. Frame rates and resolution set according to PTZ lens settings. Wide field of view :** DFOV 95°; HFOV 78°; VFOV 50°.
Speakerphone	Wireless Bluetooth / USB Wired for PC. Full duplex microphone array speakerphone. Two omnidirectional microphones support 360° pickup. Full duplex echo cancellation. Advanced noise suppression. Powerful wideband voice processing. Speaker volume : Adjustable to 90 dB SPL at 0.5 m. 3.5 mm line-in (aux) cable connects BYOD smartphones or PCs to use as speakerphones. Touch controls for volume down/up, mute, phone input, call, and hang up. Can bridge phone-in and USB into one call.
Video Format	YUV, YUY2, MJPEG. Network video compression format : H.264, H.265. Network protocol : RTSP, RTMP.
Connectivity	USB type-B 3.1 connector, backward compatible with USB 2.0. 12V/2A DC jack power adapter. Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain). IP (RJ45) PoE+: 802.3at. HDMI 1.3: 1080p 30fps/ 60fps.
Control	IR remote control. VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command). Remote side : VISCA over IP, IP (RJ45). UVC plug and play. WebUI : Browser IP access via Chrome. (Not support IE). OSD setting : HDMI out to TV monitor. PTZApp 2.
Security and Mount	Kensington lock. 1/4" tripod mounting screw. Camera wall-mount bracket included.
Power	AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A. PoE+: 802.3 at.
System Requirement	Windows® 7/10. MacOS X 10.7 or later. Google Chromebook™ version 29.0.1547.70 or higher.
Dimensions	Camera : 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg. Speakerphone : 220(L) X 49.5(D) X 181.5(H) mm/0.8kg.

The 4K dual-lens and 24X zoom on the upgraded VC550 provides a precise view of all participants in mid-large meeting rooms. The scalable speakerphone technology along with the automated AI lens uplifts the audiovisual experience.
